Brief Details of Horizontal Directional Drilling Rig :
1. Model No.: DFHD-450
2. Feeding Force: 4500KN
3. Pulling Force: 4500KN
4. Warranty: One year guarentee excluding wearing parts
5. Certifications: BV,SGS Certificate
Product Specifications of DFHD-450 Horizontal Directional Drilling Rig:
DFHD Series Hydraulic Directional Drilling Rig is special equipment, mainly used for the civic
DFHD-450 horizontal directional drilling rig, integrated with the advantages and characteristics of various HDD rigs in China and abroad, is a high-sufficient drill rig manufactured by us based on more than 10 years designing experiences.
Equipped with the diesel engine kit and separate power station, the drill rig is powerful enough to deal with various problems. The all new DFHD-450 provides 4500KN of feeding&pulling force and Max. 120000N.m. Torque to gain successful performances.
The rack and pinion transmission system is designed with advanced technology, which ensures
much more reliable and safer movement of drill head. The high-quality crawler makes it possible for drill rig to move quickly.
The operator's cabin is with wide field of view and good sound insulation. All sorts of monitoring
gauges are mounted in the cabin, which makes it simple to operate the rig. A crane with capacity of 4 tons is attached with the main machine to ensure convenient working for operator.
The main hydraulic components are all famous brand from European and American suppliers,
transfer case and reducer are adopted from well-known European factorys, thus reliable operation of the rig is guaranteed.
| Total Length | 17000mm |
| Total Width | 3200mm |
| Total Height | 3400mm |
| Weight | 39000kg |
| Power Unit | |
| Total Length | 8000mm |
| Total Width | 2300mm |
| Total Height | 2400mm |
| Weight | 18000kg |
| OPERATIONAL | |
| Maximum Pullback | 4500KN |
| Maximum Torque | 120000Nm |
| Maximum Thrust Speed | 27m/min |
| Maximum Rotation (Low speed) | 42 rpm |
| Maximum Rotation (High speed) | 84 rpm |
| DRILL STEM | |
| Type | API Standard |
| Length | Up to 9.6m |
| Pipe diameter |
|
|

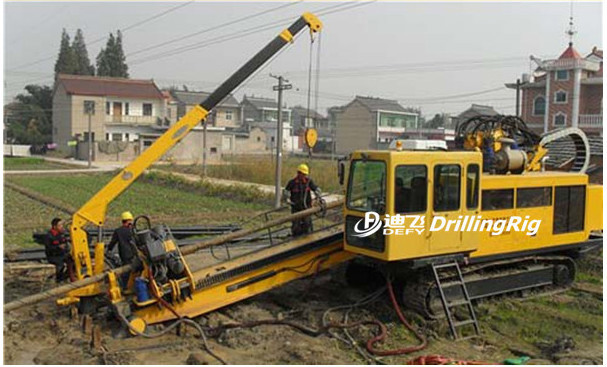

450Ton Capacity City Construction DFHD-450 Horizontal Directional Drilling HDD Rig Machine Images
|
