248 Ton Pull Capacity DFHD-245 Trenchless Laying Pipe HDD Rig Machine

Zhengzhou Defy M&E Equipment Co., Ltd.
Contact Now

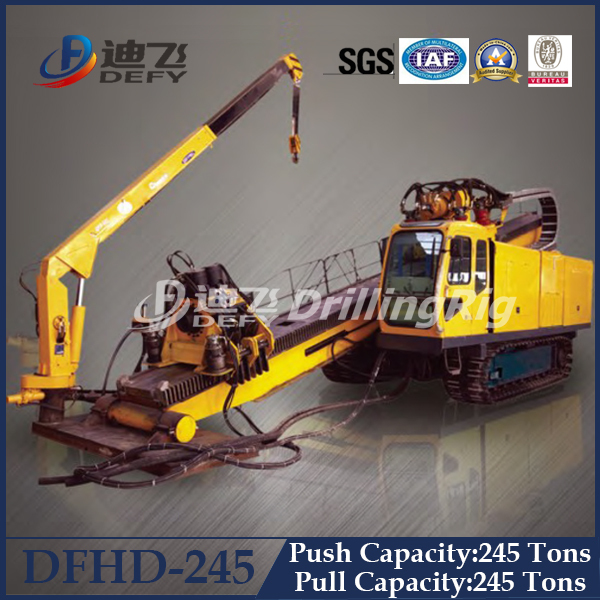

248 Ton Pull Capacity DFHD-245 Trenchless Laying Pipe HDD Rig Machine

Certification : BV,SGS certificate

Model Number : DFHD-245

Max. Push capacity : 2480KN (248Tons)

Max. Pull capacity : 2480KN (248Tons)

MOQ : 1set

Price : USD450,000.00~USD800,000.00

Delivery Time : within 3 days against full payment

Payment Terms : 50% T/T in advance as deposit, 50% T/T before delivery

Contact Now

Manufacturer of DFHD-245 Horizontal Directional Drilling Rig, Trenchless Laying Pipe Drilling Rig for Sale

248 Ton Pull Capacity DFHD-245 Trenchless Laying Pipe HDD Rig Machine

Brief Details

Brief Details of Horizontal Directional Drilling Rig :

1. Model No.: DFHD-245

2. Feeding Force: 2480KN

3.  Pulling Force: 2480KN

4. Warranty: One year guarentee excluding wearing parts

5. Certifications: BV,SGS Certificate

248 Ton Pull Capacity DFHD-245 Trenchless Laying Pipe HDD Rig Machine

Product Specifications of DFHD-245 Horizontal Directional Drilling Rig:

DFHD Series Hydraulic Directional Drilling Rig is special equipment, mainly used for the civic

DFHD-245  horizontal directional drilling rig, integrated with the advantages and characteristics  of various HDD rigs in China and abroad, is a high-sufficient drill rig manufactured by us  based on more than 10 years designing experiences.



Equipped with the diesel engine kit and separate power station, the drill rig is powerful enough to deal with various problems. The all new DFHD-245 provides 2480KN of feeding&pulling force and Max. 196KN.m. Torque to gain successful performances.



The rack and pinion transmission system is designed with advanced technology, which ensures

much more reliable and safer movement of drill head. The high-quality crawler makes it possible for  drill rig to move quickly.

The operator's cabin is with wide field of view and good sound insulation. All sorts of monitoring

gauges are mounted in the cabin, which makes it simple to operate the rig. A crane with  capacity of 4 tons is attached with the main machine to ensure convenient working for operator.

The main hydraulic components are all famous brand from European and American suppliers,

transfer case and reducer are adopted from well-known European factorys, thus reliable operation of the rig is guaranteed.

248 Ton Pull Capacity DFHD-245 Trenchless Laying Pipe HDD Rig Machine



Parameters of DFHD-245 HDD Rig



Main Drill Rig

Max. Feed Thrust/ Feed Pull

2480 KN

Feed Thrust/ Feed Pull System

Ⅰ shift :7.5 m/min

Ⅱ shift : m/min

Ⅲ shift 32 m/min

Rotation Driving

Ⅰ shift hollow spindle torque:98KN·m

Ⅱ shift hollow spindle torque: 49KN•m

Motor

Manufacture

Weichai Power

Rated Power

840HP(610KW)

Operational State

Thrust/Pull and rotation all can reach

above mentioned max. performance index.

Operator’s Cab

Equipped with Air-conditioner

Dimension and Gross Weight

Dimension(L×W×H)

14.5m×3.15m×3m

Gross Weight

39 T

Mast Entrance Oblique Angle

8°—16°

Environmental Standard and Service

Engine Emissions and Noise Meeting

European Ⅱ Standard

Hydraulic Mud Pump

Full Hydraulic Driving, Flux Stepless

Adjustable.

Flux Rate

0—2200 L/min

Pressure

0—10 MPa

Chassis

Track Assembly Type

Accessory

Pressure, flux rate, revolution and other more than ten dates will be shown in

figures. This is easy for analysis and judgment of problems and condition in

the performance process.



Different Models of Horizontal Directional Drilling Rigs for your choice

Model

Engine Power

Feeding force(KN)

Pulling Force(KN)

DFHD-15

85KW (2200r/min)

75

150

DFHD-20

110KW (2300r/min)

200

200

DFHD-28

132KW (2300r/min)

280

280

DFHD-32

145KW(2300r/min)

320

320

DFHD-40

175KW(2300r/min)

400

400

DFHD-60

225KW (2200r/min)

620

620

DFHD-120

338KW (1900r/min)

1220

1220

DFHD-245

450KW*2 sets

2450

2450

DFHD-400

552KW*2 sets

4000

4000
